Product Introduction：

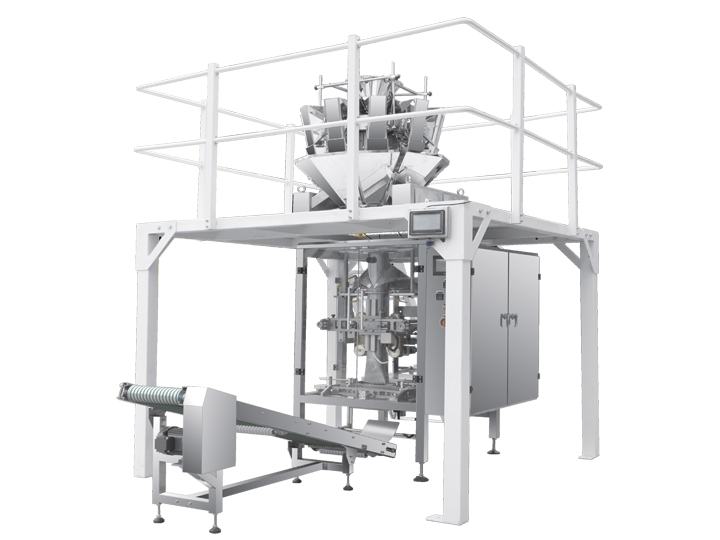

The unit is equipped with a full-automatic vertical packaging machine, a six-head electronic scale, a vacuum box and vacuum inner tube, a pinch exhaust, and a finished product conveyor. It realizes the integrated operation of automatic feeding, metering, filling, automatic vacuuming, sealing, shaping, printing, punching, counting, and finished product transportation.
Technical parameter：
Measuring range: 0.5-5kg/bag
Metering accuracy: ± 0.2%
Packaging speed: 10-20 pack/minute
Allowable maximum packing diameter: ∅ 500mm
Inner diameter of coiled paper core: ∅ 75mm
Bag making form: pillow bag (two sides)
Power supply: 5.0KW, 380V ± 10% 50HZ
Gross weight: 1300kg
