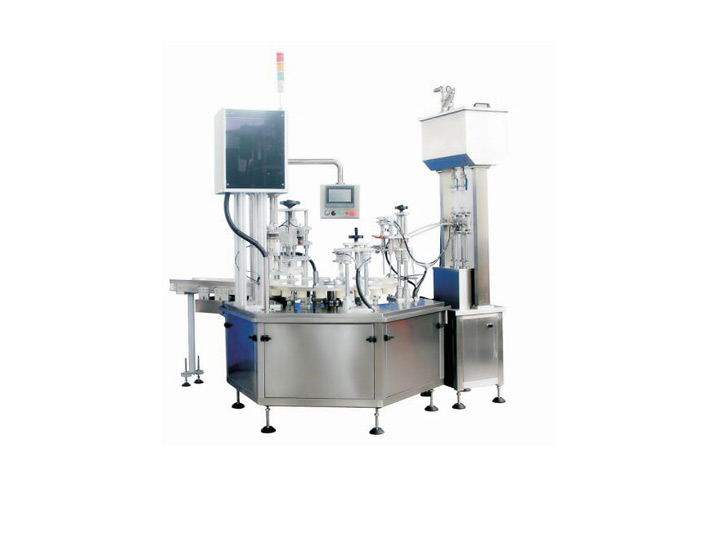

SGX-2H turntable multi-station irrigation and rotation integrated machine
Category: Liquid packaging equipment > Filling
Product intro: Product Summary：It is suitable for filling, capping (mandrel), capping and bottle discharging of various materials with different viscosity, and is applied to agrochemical, daily chemical and food industries. It can form a production line with labeli…
Product Summary：
It is suitable for filling, capping (mandrel), capping and bottle discharging of various materials with different viscosity, and is applied to agrochemical, daily chemical and food industries. It can form a production line with labeling machine and other equipment. This machine is suitable for the production of products with various bottle types and cap types and high frequency of changing specifications.
Main parameters：
·Overall dimension: R1600mm (Regular hexagon) 2200mm (Height)
·Number of filling heads: 2 heads or 4 heads filling 1 head or 2 heads capping
·Applicable bottle diameter: Multi kinds of bottles multi kinds of caps
·Bottle mouth diameter: ≥ Ø 10mm
·Package specification: 10ml-100ml 20ml-200ml 30ml-500ml
·Production capacity: 2000-3000 bottoms/hour
·Measurement error: ± 0.5% - 1%
·Power supply: AC220V; 50/60HZ
·Main engine power: 3KW
·Equipped with air source: 0.6MPa-0.8MPa
-
