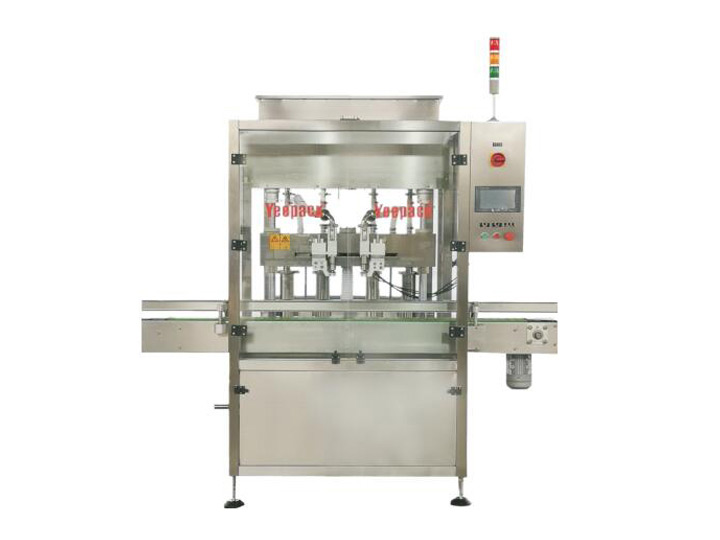

SYG1000-1 2Z intelligent full-automatic moving tracking servo piston filling machine

SYG1000-1 2Z intelligent full-automatic moving tracking servo piston filling machine

Category: Liquid packaging equipment > Filling

Product intro: Product Summary:It is applicable to the filling of various materials with different viscosity, and applied to agrochemical, daily chemical, food and other industries. It can form a production line with capping machine, labeling machine and other equi…
Inquire
SYG1000-1 2Z intelligent full-automatic moving tracking servo piston filling machine
Product Introduction

Product Summary:

  It is applicable to the filling of various materials with different viscosity, and applied to agrochemical, daily chemical, food and other industries. It can form a production line with capping machine, labeling machine and other equipment. This machine adopts multiple sets of servo and coding systems, which can be adjusted and operated on the touch screen. After adjustment and confirmation, the formula can be saved. If the reset is confirmed with one key during switching, no other tools are needed. The working efficiency of the double servo piston is equal to that of the conventional filling equipment with more than ten heads. The part in contact with the material is an integral movable mechanism, which can be moved and disassembled. In addition, the internal parts are connected with quick assembly structure, which is convenient and quick for disassembly and assembly. Due to the intelligent one-button reset function used for changing specifications, this equipment is suitable for the production needs of changing varieties frequently.


Main parameters:
·Overall dimension: 2000mm × 1600mm × 2000mm(L*W*H)
·Number of filling heads: 1 2
·Applicable bottle diameter: Diameter: Ø 50mm - Ø 100mm
·Bottle mouth diameter: ≥ Ø 18mm
·Package specification: 100ml-1000ml
·Production capacity: 2000 bottles/our @ one head 3000 bottles/our @ two head
·Measurement error: ± 0.5% - 1%
·Power supply: AC220V; 50/60HZ
·Main engine power: 3KW
·Equipped with air source: 0.6MPa-0.8MPa
