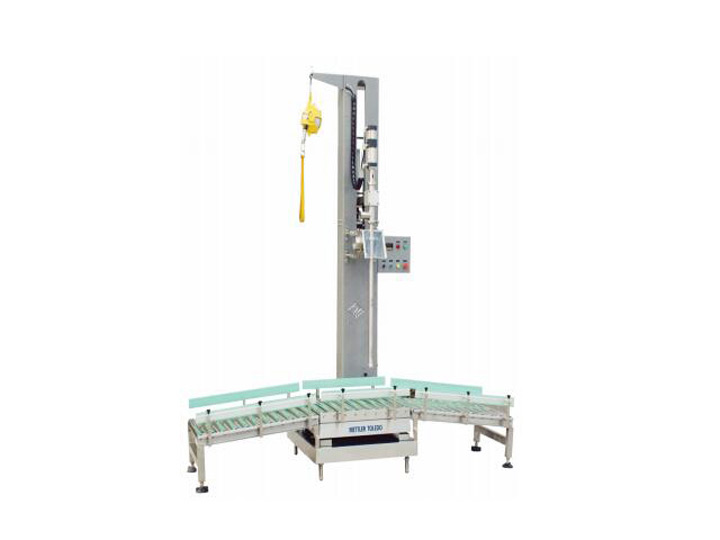

SCZ-300 weighing quantitative filling machine

SCZ-300 weighing quantitative filling machine

Category: Liquid packaging equipment > Filling

Product intro: Product Summary:It is used for filling various materials with different viscosity, and is used in agrochemical, daily chemical, food and other industries.The machine uses the weighing method to monitor the current filling quantity in real time and fe…
Inquire
SCZ-300 weighing quantitative filling machine
Product Introduction

Product Summary:

  It is used for filling various materials with different viscosity, and is used in agrochemical, daily chemical, food and other industries.

  The machine uses the weighing method to monitor the current filling quantity in real time and feed it back to the controller. The controller outputs the fast and slow filling control signal according to the set data, so as to realize the fast and accurate filling of large filling specifications.

  It makes up for the defects of traditional flowmeter type filling machine in quantitative filling and unable to measure viscous liquid. This equipment can meet the needs of automatic filling of various liquids, and can meet the filling of liquid without foam and with foam.


Main parameters:
·Overall dimension: 800mm × 1400mm × 3100mm (L*W*H)
·Number of filling heads: 1
·Applicable bottle diameter: bucket
·Bottle mouth diameter: ≥ 50mm
·Package specification: 50KG-300KG
·Measurement error: ± 0.2% - 0.5%
·Power supply: AC220V; 50/60HZ
·Main engine power: 2KW
·Equipped with air source: 0.6MPa-0.8MPa
