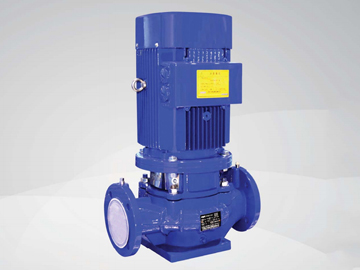

Product overview：
DFG series (and derived from hot water type) pipeline pumps are carefully designed by our company based on the hydraulic model of ^ and according to the famous users under different service conditions. The product quality is in accordance with the standard of GB/T 5657-1995 Technical Conditions for Centrifugal Pumps, Class III.
Due to the direct connection between the motor and the pump, the DFG series pipeline pump simplifies the structure of the intermediate drive and enhances the stability of operation. The pump adopts a pipe-type structure. The inlet and outlet of the pump can be installed at any position and in any direction of the pipeline like a valve. Compared with the ordinary horizontal pump, the floor area is reduced by 30%, and has the characteristics of low operating noise and low vibration. The service life of wearing parts is greatly extended. This type of pump is widely favored by the market due to its stable performance, high efficiency and energy saving, small floor area and compact structure.
Product use：
Applicable to industrial, urban water supply and high-rise building water supply
Fire pipe pressurization
Cold and hot water circulation of cold and warm air conditioning
Long-distance water conveyance
The production process is circularly pressurized and transported, and is applicable to the supporting use of various water supply and drainage equipment, boilers and other equipment
Working conditions and scope
The volume of solid insoluble matter in the suction and discharge medium shall not exceed 1% of the volume, and the particle size shall be ≤ 0.2mm;
Flow range: 2-1400m ³/ h
Lift range: 5-130m
Pump system ^ high working pressure: ≤ 1.6MPa, that is, suction pressure+pump head ≤ 1.6MPa;
Inlet pressure: when the pressure is greater than 0.8MPa, the material of pump body and pump cover must be changed, such as ductile iron QT450-10.
Medium temperature: - 15 ℃ ＜ T ≤+80 ℃, hot water type 80 ＜ T ＜ 105 ℃, equal to or higher than 105 ℃, special order is required
Ambient temperature: ≤ 40 ℃
Motor protection grade: IP54 or IP55;
Motor insulation class: Class B or Class F.

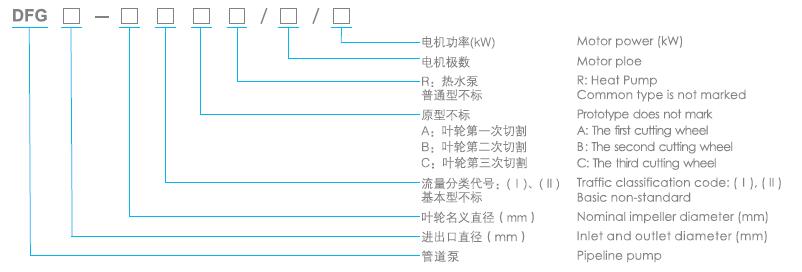

Model definition：
