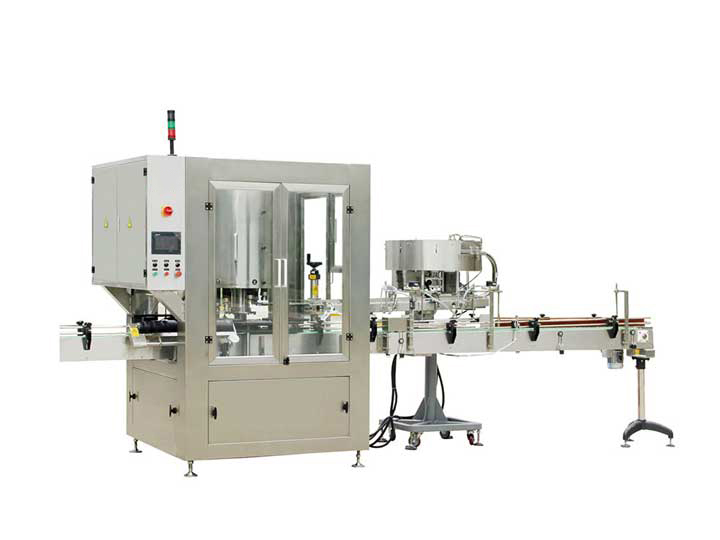

SHX-6D automatic rotary capping machine
Category: Liquid packaging equipment > Screw cap
Product intro: Product Summary:This equipment sends bottles to the screw conveyor by the conveyor belt. The bottles are transferred to the capping machine by the 1 # star wheel through the shape plate of the screw conveyor. The bottle clamping plate blocks the bottl…
Product Summary:
This equipment sends bottles to the screw conveyor by the conveyor belt. The bottles are transferred to the capping machine by the 1 # star wheel through the shape plate of the screw conveyor. The bottle clamping plate blocks the bottleneck (or the anti-rotation belt holds the bottle body tightly) for capping, and then the shaped plate transfers the filled and capped beverage bottles to the conveyor belt through the 2 # star wheel. This completes the whole process of capping.
Main parameters:
·Applicable bottle diameter: Ф 40mm~ Ф 90mm
·Applicable bottle height: 80mm~250mm
·Applicable bottle cap: Ф 15mm~ Ф 50mm
·Capping speed: ≤ 8000 bottom/hour
·Air source pressure: 0.6~0.8Mpa
·Air consumption: 200L/min
·Power supply: AC 380V/50Hz
·Power: 3Kw
·Weight: about 1600Kg
·Overall dimension (L × W × H) : 3500mm × 1360mm × 2400mm
-
