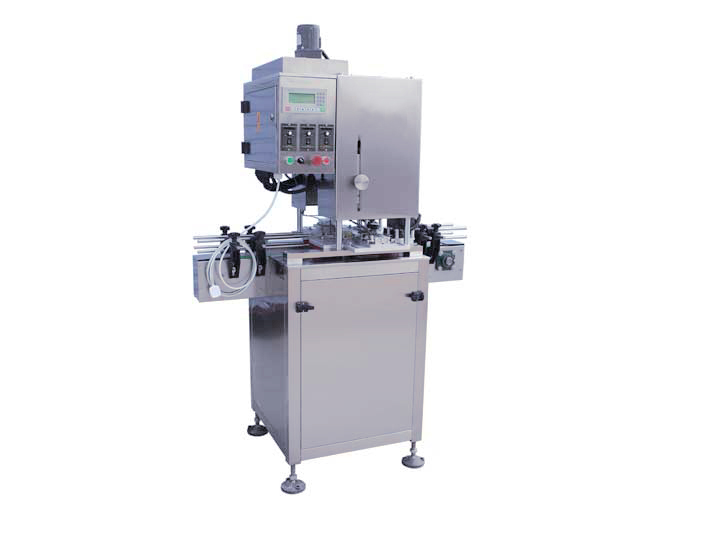

SXG-4B semi-automatic four-wheel capping machine

Product Introduction

Product Summary:
The machine adopts bottle clamping belt conveying and cylinder clamping and positioning. The upper side of the cover is equipped with cylinder capping, and the four capping wheels are rolled to complete the capping. It is applicable to the rolling of round bottle caps and has wide applicability.

Main parameters:
·Applicable bottle height: 50mm~300mm
·Applicable bottle cap: Ф 15mm~ Ф 100mm
·Capping speed: ≤ 1200 bottom/hour
·Air source pressure: 0.6~0.8Mpa
·Air consumption: 20L/min
·Power supply: AC 220V/50Hz
·Power: 2Kw
·Weight: about 600Kg
·Overall dimension (L × W × H) : 1000mm × 800mm × 1650mm
