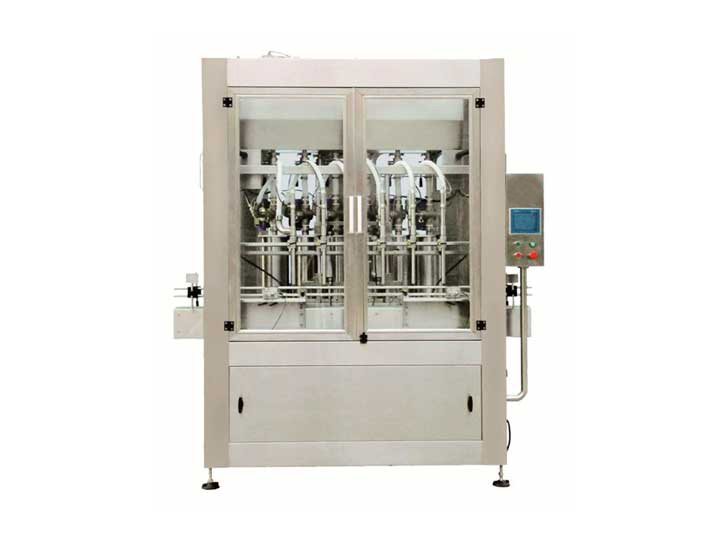

SGZ5000-6D intelligent high viscosity filling machine

Product Summary:
  This machine is a plunger filling machine driven by servo motor, which implements automatic bottle feeding, variable speed (settable) filling and automatic bottle discharging.

  Accurate measurement: servo system is adopted to ensure high accuracy of piston movement stroke.

  Variable speed filling: When the filling process is close to the target filling capacity, the variable speed can be used to achieve slow filling to prevent liquid from overflowing the bottle mouth and causing pollution.

  Convenient adjustment: To change the filling specification, you only need to change the parameters in the touch screen, and the filling head used can be changed in place at one time.

Main parameters:
·Filling capacity: 500ml~5000ml
·Applicable bottle diameter: Ф 60mm~ Ф 140mm
·Measuring accuracy: ± 1% (≤ 2500ml), ± 0.5% (2500ml~5000ml)
·Production capacity: ≤ 2000 bottoms/hour
·Air source pressure: 0.6~0.8Mpa
·Air consumption: 100 l/min
·Power supply: AC 220V/50Hz
·Power: 2Kw
·Weight: about 1000Kg
·Overall dimension (L × W × H) : 2000mm × 1200mm × 2300mm
