SZG1000-12D automatic in-line filling machine

Category: Liquid packaging equipment > Filling

Product intro: Product Summary:The machine adopts constant pressure fixed flow channel parameters to control the filling time to achieve different metering filling. The equipment has simple structure, convenient operation and no need to replace spare parts to change…

Inquire

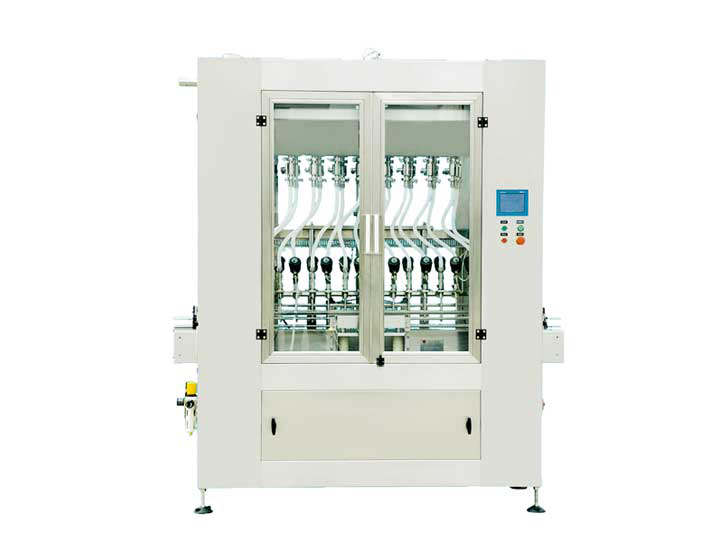

SZG1000-12D automatic in-line filling machine

Product Introduction

Product Summary:
The machine adopts constant pressure fixed flow channel parameters to control the filling time to achieve different metering filling. The equipment has simple structure, convenient operation and no need to replace spare parts to change the bottle type.

Main parameters:
·Filling capacity: 40ml~1000ml
·Applicable bottle diameter: Ф 35mm~ Ф 100mm
·Metering accuracy: ± 1%
·Production capacity: ≤ 5400 bottoms/hour
·Air source pressure: 0.6~0.8Mpa
·Air consumption: 200 l/min
·Power supply: AC 220V/50Hz
·Power: 0.5Kw
·Weight: about 500Kg
·Overall dimension (L × W × H) : 2000mm × 1050mm × 2300mm
