SGZ1000-1C semi-automatic piston filling machine

Category: Liquid packaging equipment > Filling

Product intro: Product Summary:The machine is equipped with a special three-way filling valve to achieve the filling effect under the reciprocating motion of the cylinder. The piston sealing ring is made of imported materials, which is wear-resistant and corrosion-r…

Inquire

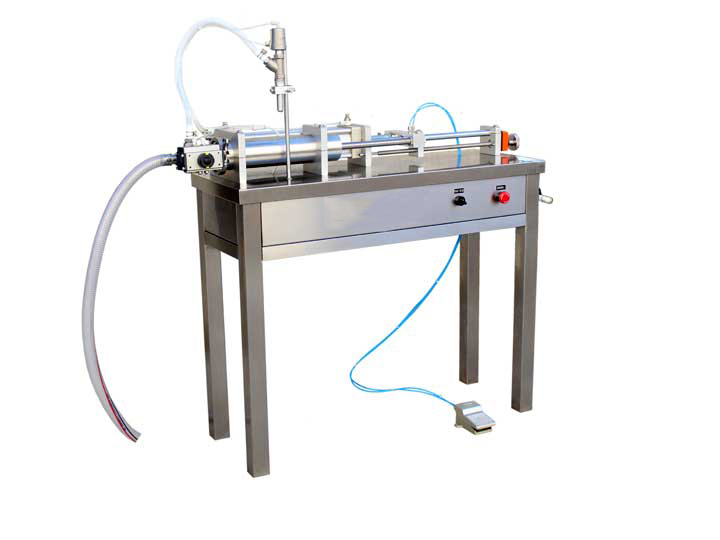

SGZ1000-1C semi-automatic piston filling machine

Product Introduction

Product Summary:
The machine is equipped with a special three-way filling valve to achieve the filling effect under the reciprocating motion of the cylinder. The piston sealing ring is made of imported materials, which is wear-resistant and corrosion-resistant, and greatly prolongs its service life.

Main parameters:
·Filling capacity: 60ml~1000ml
·Applicable bottle diameter: Ф 30mm~ Ф 100mm
·Metering accuracy: ± 1%
·Production capacity: ≤ 900 bottoms/hour
·Air source pressure: 0.6~0.8Mpa
·Air consumption: 40 l/min
·Weight: about 50Kg
·Overall dimension (L × W × H) : 1100mm × 500mm × 1300mm
