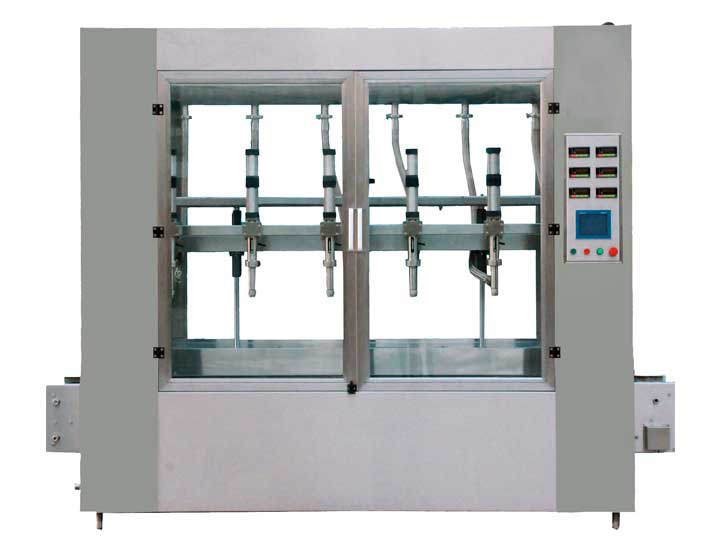

SCZ50-6B Automatic Weighing Filling Machine
Category: Liquid packaging equipment > Filling
Product intro: Product Summary:The equipment is composed of a linear scale table (with roller table), a chain push rod in and out bottle mechanism, a fast and slow filling (with cylinder diving) mechanism, a feeding transition box, a weighing control instrument and …
Product Summary:
The equipment is composed of a linear scale table (with roller table), a chain push rod in and out bottle mechanism, a fast and slow filling (with cylinder diving) mechanism, a feeding transition box, a weighing control instrument and a programmable control unit. The liquid filling scale can meet the needs of automatic filling of various liquids. The motor driven submersible structure can meet the filling of liquid without foam and with foam.
Main parameters:
·Applicable bottle diameter: Min140 × two hundred × 320mm,Max260 × two hundred and ninety × 500mm
·Outer diameter of filling head: Ф 40mm
·Metering accuracy: ± 0.2%
·Filling capacity: 5Kg-30Kg
·Filling speed: ≤ 600 bottles/hour
·Air source pressure: 0.6-0.8Mpa
·Air consumption: 150L/min
·Power supply: AC380V/50Hz
·Power: 2Kw
·Weight: about 800Kg
·Overall dimension (L × W × H) : 2800mm × 1400mm × 2400mm
-
