SCZ50-1B semi-automatic weighing filling machine

Category: Liquid packaging equipment > Filling

Product intro: Product Summary:This machine is a new filling machine integrating high-precision electronic weighing technology, machine, electricity and instrument. The weighing method is used to monitor the current filling quantity in real time and feed it back to …

Inquire

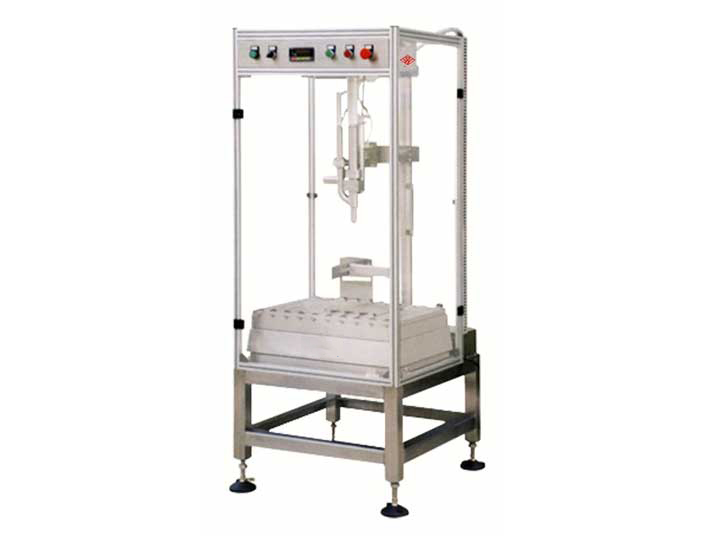

SCZ50-1B semi-automatic weighing filling machine

Product Introduction

Product Summary:
This machine is a new filling machine integrating high-precision electronic weighing technology, machine, electricity and instrument. The weighing method is used to monitor the current filling quantity in real time and feed it back to the controller. The controller outputs the fast and slow filling control signal according to the set data to achieve fast and accurate filling of large filling specifications.

Main parameters:
·Metering accuracy: ± 0.2%
·Filling capacity: 5Kg-50Kg
·Filling speed: ≤ 100 bottles/hour
·Air source pressure: 0.6-0.8Mpa
·Air consumption: 20L/min
·Power supply: AC220V/50Hz
·Power: 0.5Kw
·Weight: about 150Kg
·Overall dimension (L × W × H) : 800mm × 800mm × 1900mm
