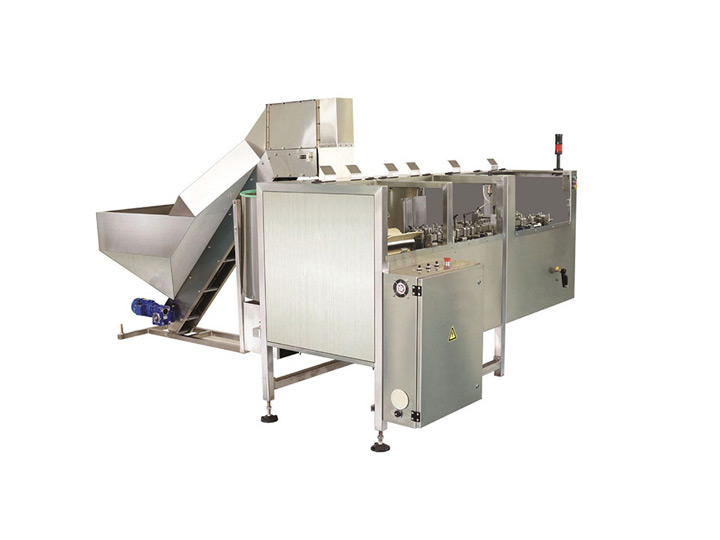

SLP-200D automatic bottle management machine
Category: Liquid packaging equipment > Bottle management
Product intro: Product Summary:The machine is mainly composed of bottle loading machine, rotary table, bottle removal part and bottle management part. A large number of disordered bottles are put into the rotary table by the bottle loading machine and transferred to…
Product Summary:
The machine is mainly composed of bottle loading machine, rotary table, bottle removal part and bottle management part. A large number of disordered bottles are put into the rotary table by the bottle loading machine and transferred to the bottle handling position through the conveyor belt, so that the bottles can be vertically transported to the user's conveyor belt.
It is applicable to automatic bottle management and transportation of plastic bottles in food, daily chemical, pharmaceutical and other industries.
Main parameters:
·Applicable bottle diameter: Ф 45mm~ Ф 90mm
·Applicable bottle height: Ф 80mm~ Ф 240mm
·Production capacity: ≤ 10000 bottles/hour
·Power supply: AC 220V/50Hz
·Power: 1.5Kw
·Weight: about 450Kg
·Overall dimension (bottle management machine) (L × W × H) : 2600mm × 1500mm × 1500mm
·Overall dimension (bottle loading machine) (L × W × H) : 2200mm × 1200mm × 1900mm
-
